Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat
Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat - ECV20 / Satin is backordered and will ship as soon as it is back in stock.
Materials & Care
Materials & Care
The webpage provides guidance on properly caring for your flag to ensure its longevity and appearance, including tips on cleaning, storage, and respectful handling. Learn more here.
Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat
Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat
Equipped with a cam cleat instead of a winch, this flagpole offers the benefits of an internal halyard at a more affordable price.
-
- 100% MADE IN THE USA - Not just assembled in the USA but manufactured here, too.
- STRAIGHTFORWARD SHIPPING FEES - $9 flat rate shipping.
- WARRANTY - Lifetime warranty on the flagpole shaft is included with your purchase. See warranty statement for complete details.
- PLEASE NOTE - Flag is NOT included.
DETERMINE WHICH FLAGPOLE MODEL TO ORDER
Use the specifications below to determine which flagpole model will best meet your technical needs.
| Vanguard Aluminum Flagpole - Internal Halyard with Cam Cleat | ||||||||||
| MODEL | Exposed Height | Overall Height | Number of Sections |
BUTT DIA. | TOP DIA. | WALL | UNFLAG (MPH) | FLAG (MPH) | FLAG SIZE | SHIP WEIGHT |
| ECXV20 | 20 | 23 | 1 | 5" | 3" | 0.125 | 250 | 120+ | 3X5' | 129LBS |
| ECV20 | 20 | 23 | 1 | 5" | 3" | 0.188 | 315 | 120+ | 3X5' | 142LBS |
| ECXV25 | 25 | 27 | 1 | 5" | 3" | 0.125 | 144 | 104 | 4X6' | 139LBS |
| ECXAV25 | 25 | 27 | 1 | 5" | 3" | 0.156 | 192 | 117 | 4X6' | 152LBS |
| ECV25 | 25 | 27 | 1 | 6" | 3 1/2" | 0.188 | 222 | 120+ | 4X6' | 197LBS |
| ECXV30 | 30 | 33 | 1 OR 2 | 5" | 3" | 0.125 | 110 | 75 | 5X8' | 172LBS |
| ECXAV30 | 30 | 33 | 1 OR 2 | 5" | 3" | 0.156 | 119 | 91 | 5X8' | 185LBS |
| ECLV30 | 30 | 33 | 1 | 5" | 3" | 0.188 | 127 | 96 | 5X8' | 185LBS |
| ECAV30 | 30 | 33 | 1 | 6" | 3 1/2" | 0.156 | 184 | 117 | 5X8' | 224LBS |
| ECV30 | 30 | 33 | 1 | 6" | 3 1/2" | 0.188 | 211 | 120+ | 5X8' | 227LBS |
| ECXV35 | 35 | 38 1/2 | 1 | 6" | 3 1/2" | 0.156 | 122 | 91 | 6X10 | 247LBS |
| ECAV35 | 35 | 38 1/2 | 1 | 7" | 3 1/2" | 0.156 | 179 | 117 | 6X10 | 261LBS |
| ECV35 | 35 | 38 1/2 | 1 | 7" | 3 1/2" | 0.188 | 200 | 120 | 6X10 | 281LBS |
| ECXV40 | 40 | 44 | 2 | 7" | 3 1/2" | 0.156 | 125 | 91 | 8X12 | 294LBS |
| ECV40 | 40 | 44 | 2 | 8" | 3 1/2" | 0.188 | 195 | 120 | 8X12 | 319LBS |
PICK A FINISH FOR YOUR FLAGPOLE
Unless noted otherwise, all finishes are anodized. (Anodizing is an electrochemical process that gives metal a more durable and corrosion-resistant finish.)
-
- Satin (not anodized)
- Clear
- Dark Bronze
- Black
SHIPMENT DETAILS
IMPORTANT: If your new flagpole will not be installed immediately upon delivery, be sure to store it in a dry location. If the outer tube and/or the wrappings get damp or wet, remove the tube and protective wrapping and place the unwrapped flagpole and parts at least 12” above grade. If this is not done, mold will develop and ruin the finish of the flagpole. The factory cannot assume responsibility for improperly stored flagpoles.

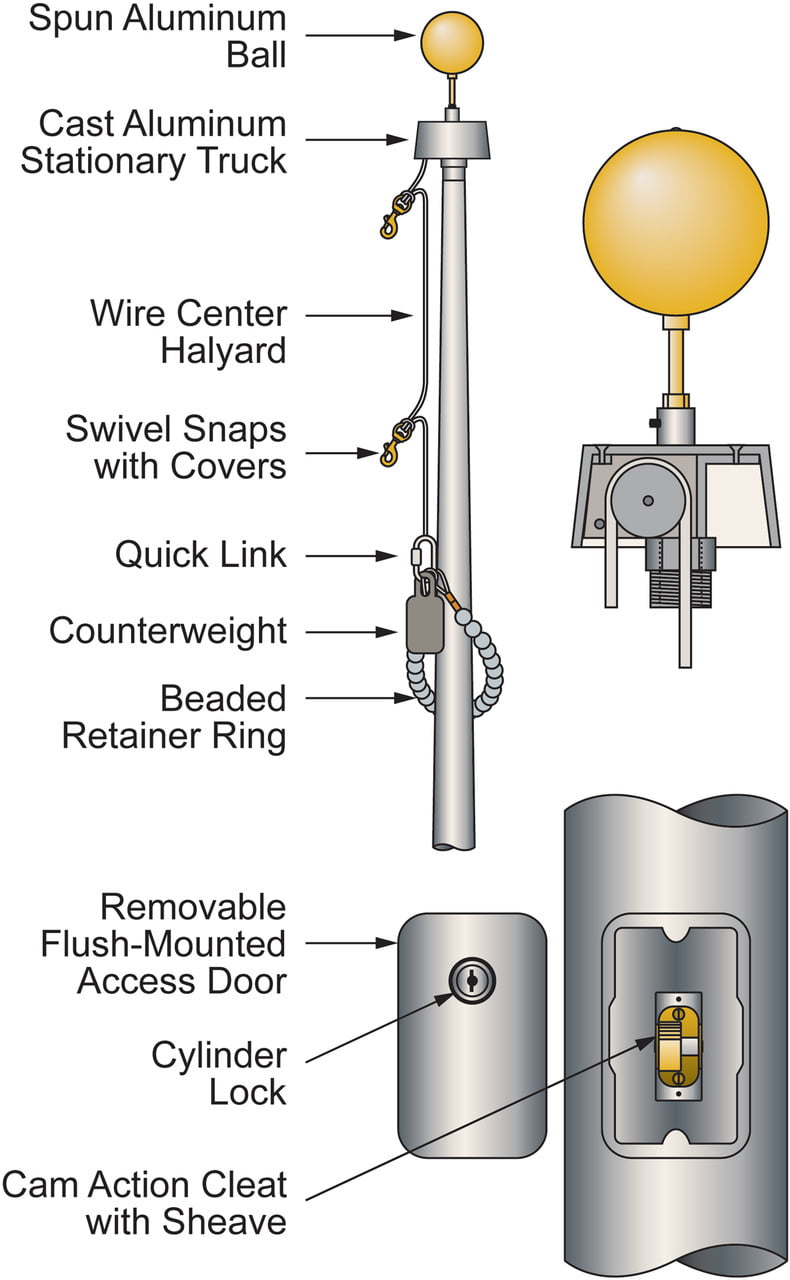

INCLUDED WITH YOUR SHIPMENT
-
- Flagpole
- Gold anodized aluminum ball ornament
- Revolving truck
- Nylon wire center halyard
- Swivel flag snaps w/vinyl snap covers
- Retainer ring and counterweight
- Stainless steel quick link

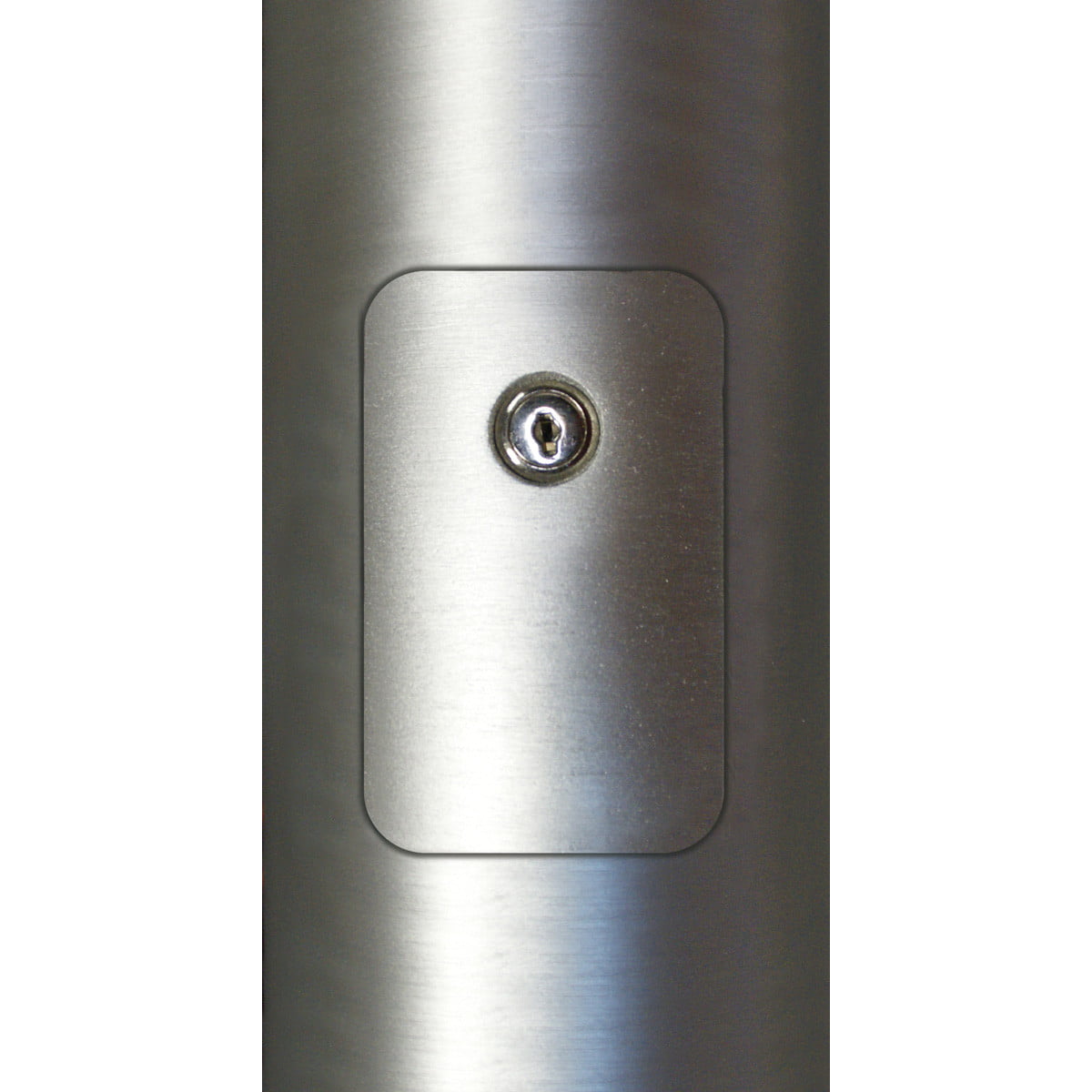

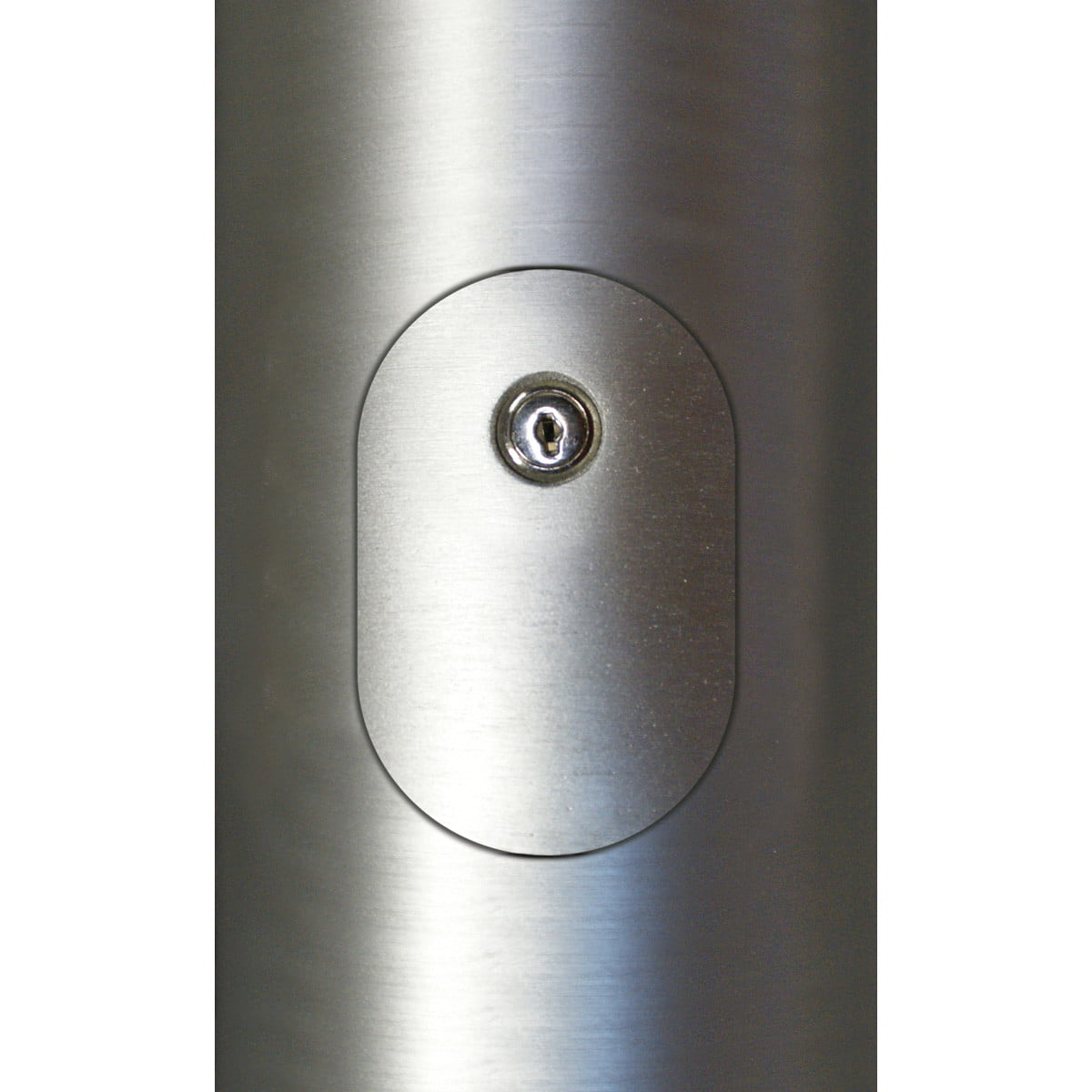

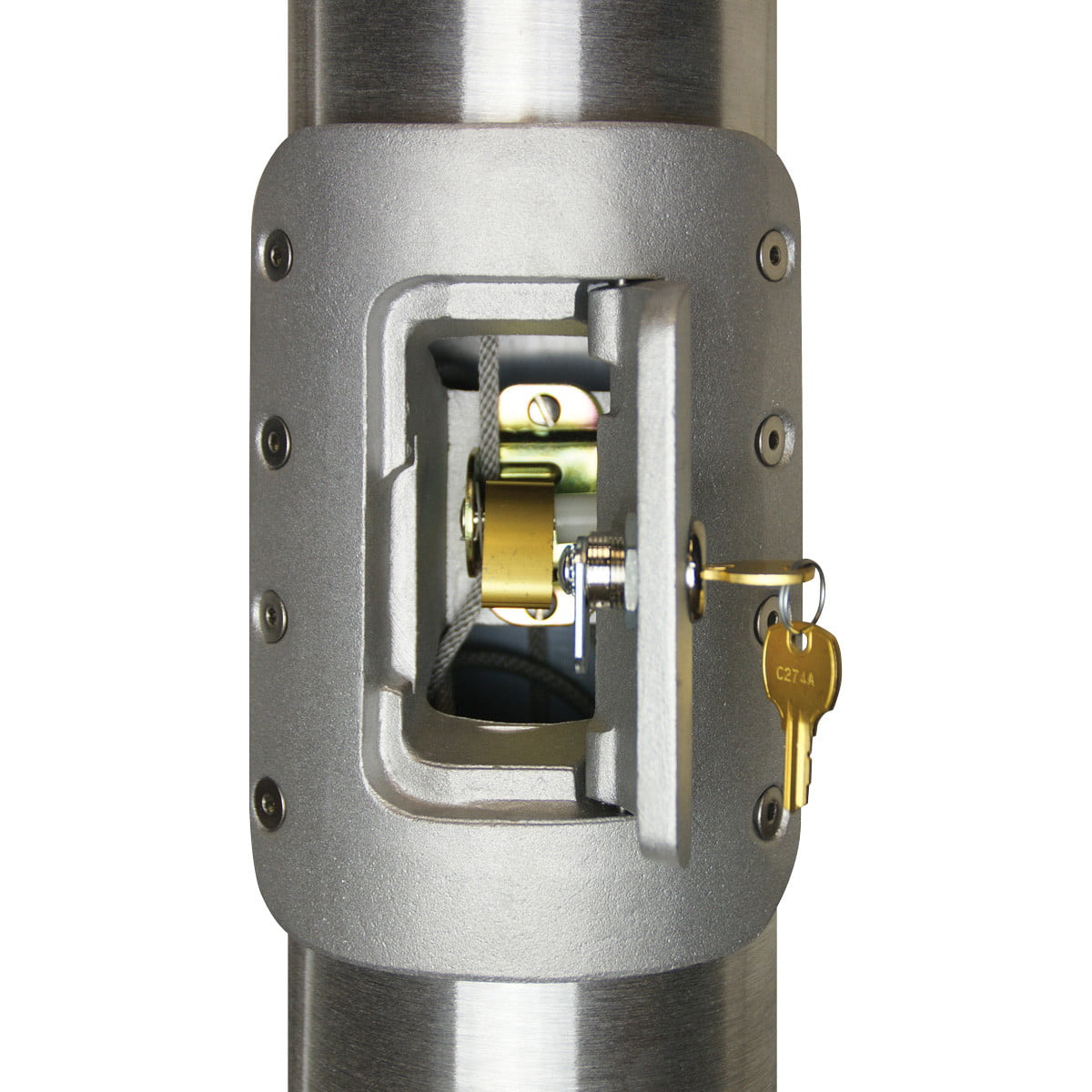

- Cam action cleat (accessible behind a lockable access door)
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
DO YOU HAVE QUESTIONS?
At Flags USA, we've been selling flags and flag accessories for over thirty years;
If you have a question, we probably have an answer.
Give us a call at 866-879-1776.
